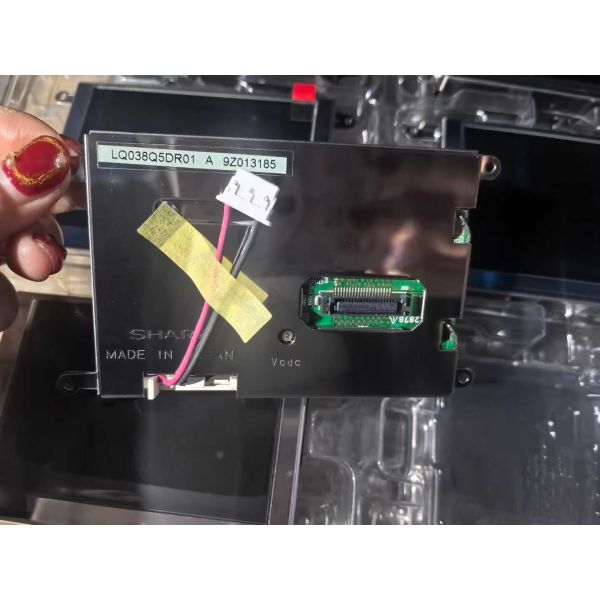

Sharp 3.8inch Automotive LCD Display with 320*240 Pixels Resolution and 450cd/m² Brightness LQ038Q5DR01

Brand Name : Sharp

Model Number : LQ038Q5DR01

Certification : Rohs,CE,FCC

Place of Origin : China

MOQ : 10pcs

Price : $56

Payment Terms : T/T,W,Western Union,MoneyGram

Supply Ability : 2000pcs per week

Delivery Time : 4-5 working day

Packaging Details : Industrial packing

Quality : Brand new Original

Package : Original industrial packing

resolution : 320*240pixels

style : LCD 40PIN

brightness : 450CCD M2

color : 262K

contrast ratio : 100 :1

working life : 20K Hours

touch panel : without touch

Contact Now

Sharp 3.8-inch Automotive LCD Display
Model: LQ038Q5DR01 | 320*240 Pixels | 450 cd/m² | 40-pin Car LCD Panel
Product Overview
The Sharp LQ038Q5DR01 is a 3.8-inch diagonal a-Si TFT-LCD display panel designed specifically for automotive applications. This display features an integrated CCFL backlight system and is engineered to withstand harsh automotive environments with wide operating temperature ranges and vibration resistance.
Key Features
  • Wide operating temperature range (-30°C to 85°C)
  • 3G vibration resistance (2.9G / 28.4 m/s²)
  • 180° reverse viewing capability
  • Matte surface with antiglare and antireflection treatment
  • High brightness 450 cd/m² luminance
  • Automotive-grade reliability
Technical Specifications
BrandSharp
Model NumberLQ038Q5DR01 (Alias: LQ038Q5DR01T, LQ038Q5DR01A)
Diagonal Size3.8 inches
Panel Typea-Si TFT-LCD, LCM
Resolution320(RGB)*240 (QVGA) - 106 PPI
Active Area78.72(W) * 53.64(H) mm
Outline Dimensions117.6 * 69.45 * 13.75 mm (H*V*D)
Luminance450 cd/m² (Typical)
Contrast Ratio100:1 (Minimum)
Viewing Angle65/65/40/65 (Typical, CR≥5)
Response Time30/50 ms (Typical, Tr/Td)
Optimal Viewing6 o'clock direction
Color Depth262K colors
Backlight1 CCFL, 20K hours lifespan, No Driver
Weight135g (Maximum)
Refresh Rate60Hz
TouchscreenWithout touch screen
Signal InterfaceParallel RGB (1 channel, 6-bit), 40-pin connector
Operating Voltage3.3V (Typical)
Environmental Specifications
Operating Temperature-30°C to 85°C
Storage Temperature-40°C to 95°C
Vibration Resistance2.9G (28.4 m/s²)
Important Notice: This model entered mass production in Q2 2000 with last shipment in Q1 2013 and is now discontinued. We strongly recommend contacting Sharp or their authorized distributors for the latest production status and specifications before considering this model for new product designs.
